Hydra Nor International Ltd.

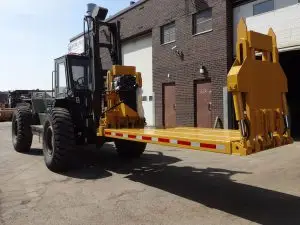

Specifications Sheet: Model HN-1500INT
60 Ton Karlift System
Cylinder Stroke: 31”
Total Beam Height: 37.06”
Beam Height at Rest: 5.75”
Overall Length: 145”
Overall Width: 51”
Overall Height: 59”
Total Weight: 5890 lbs.
Warranty: 2 years (parts & labor)
This lifting system comes with the following features:
Power unit integrated onto the unit
4 lift cylinders, two on each side, complete with load-lowering counterbalance valves
4 twin hydraulic/mechanical locks integrated with counterbalance valves on lift cylinders
2:1 safety factor
Main lift beam swivels to follow the angle of the lifted car
Main frame – box-type construction, designed so that no blocking is required when supported by rail
Ideal for Intermodal cars and Autoracks
All power units come standard with a 20′ remote control cable
Option for radio remote control
